Forklift Carton Clamp for Sale - Fujian Huamai Machinery Co., Ltd.

Supply Forklift Carton Clamp

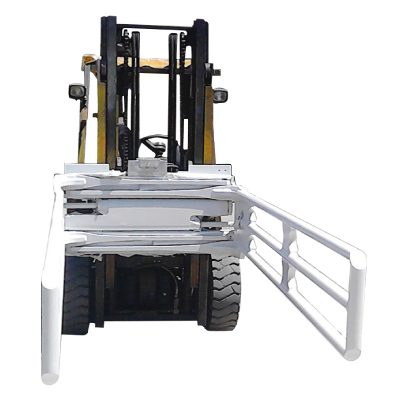

Our company can supply a wide range of bale clamps for all applications; pulp, waste paper, cotton, tobacco, foam and more. A variety of capacities, opening ranges and arm finishes will ensure that you get the right model for your application.

Forklift Standards

3.0Ton Diesel Forklift Truck 2 stage , Hydraulic transmission (Automatic), 1.22M fork, China Engine 490BPG,Penumatic tyre, Maintenance Free Battery. Seat with safety belt & steady bar Warning light

alternativer

Mast: 2-stage 3.3m/3.5m/4mmast; 3-stage4.5m/5m/5.5m/6m/7.3mmast.
Optional engine:EURO II/III China engine; DEUTZ-DACHAI engine; ISUZU engine;
YANMAR engine

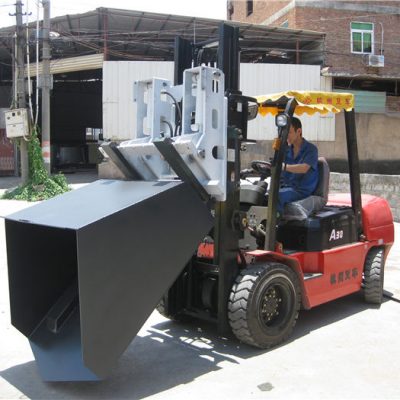

Side shifter/Rotator/Push / Pull /Paper Roll clamps Pole attachments etc
Solid tires

videoer

Feartures

Kraftig motor
Low center of gravity, small turning radius, more stable and reliable
Comfortable seat for long-time operation
Safe overhead guard
Rear light for working in the dark
Dual air filter
Streamline balance weight
Various Attachments options

Technical Parameters

Generell	Modell		HUAMAI30
	Nominell kapasitet	kg	3000
	Last sentrum	mm	500
	Krafttype		diesel
	Overføring		hydraulisk
dimensjoner	Lifting height	mm	3000
	Gratis løftehøyde	mm	80
	Svingradius	mm	2500
	Overall length	mm	3800
	Total bredde	mm	1230
	Overall height (mast lowered)	mm	2095
	Overall height (mast raised)	mm	4080
	Overall height (overhead guard)	mm	2110
	Fork length	mm	1220
	Fork width	mm	125
	Fork thickness	mm	45
Opptreden	Max. driving speed (with/without load)	km / t	18/20
	Max. lifting speed (with load)	mm / s	400
	Max. traction (with/without load)	kn	15.5/10.5
	Graduerbarhet (med / uten belastning)	%	15/20
	Tilting angles(forward/backward)	°	6/12
	Service weight	kg	4320
Motor	Motormodell		490BPG
	Makt	kw	39
	Nominell hastighet	rpm	2650
	Displacement	L	2.67
	Antall sylindere		4
Hjul	Front overhang	mm	465
	Wheel base	mm	1700
	Front tread	mm	1000
	Rear tread	mm	970
	Dekk foran		28x9-15
	Bakre dekk		6.50-10

Rask informasjon

Opprinnelsessted: Xiamen, Kina (fastlandet)
Merkenavn: HUAMAI
Modellnummer: HUAMAI30
Forklift Type: Electric/ Diesel/ Lpg/ Gaslion Fork lift Truck
Loading Capacity: 3 tonne / 6000 lbs/3000kg
lift height: 2-stage 3.3m/3.5m/4m mast; 3-stage4.5m/5m/5.5m/6m/7.3m mast
Tire: Pneumatic tires(optional air or solid)
Options: Cab with heater/ air conditioning EURO II/III China engine
Attachments: Side shifter/Rotator/bale clamps attachments
Application: pulp, waste paper, cotton, tobacco, foam
Mast: Duplex mast / Triplex mast
Related products: 2 ton 3.5 ton /5 ton/7 ton/10 ton ...
